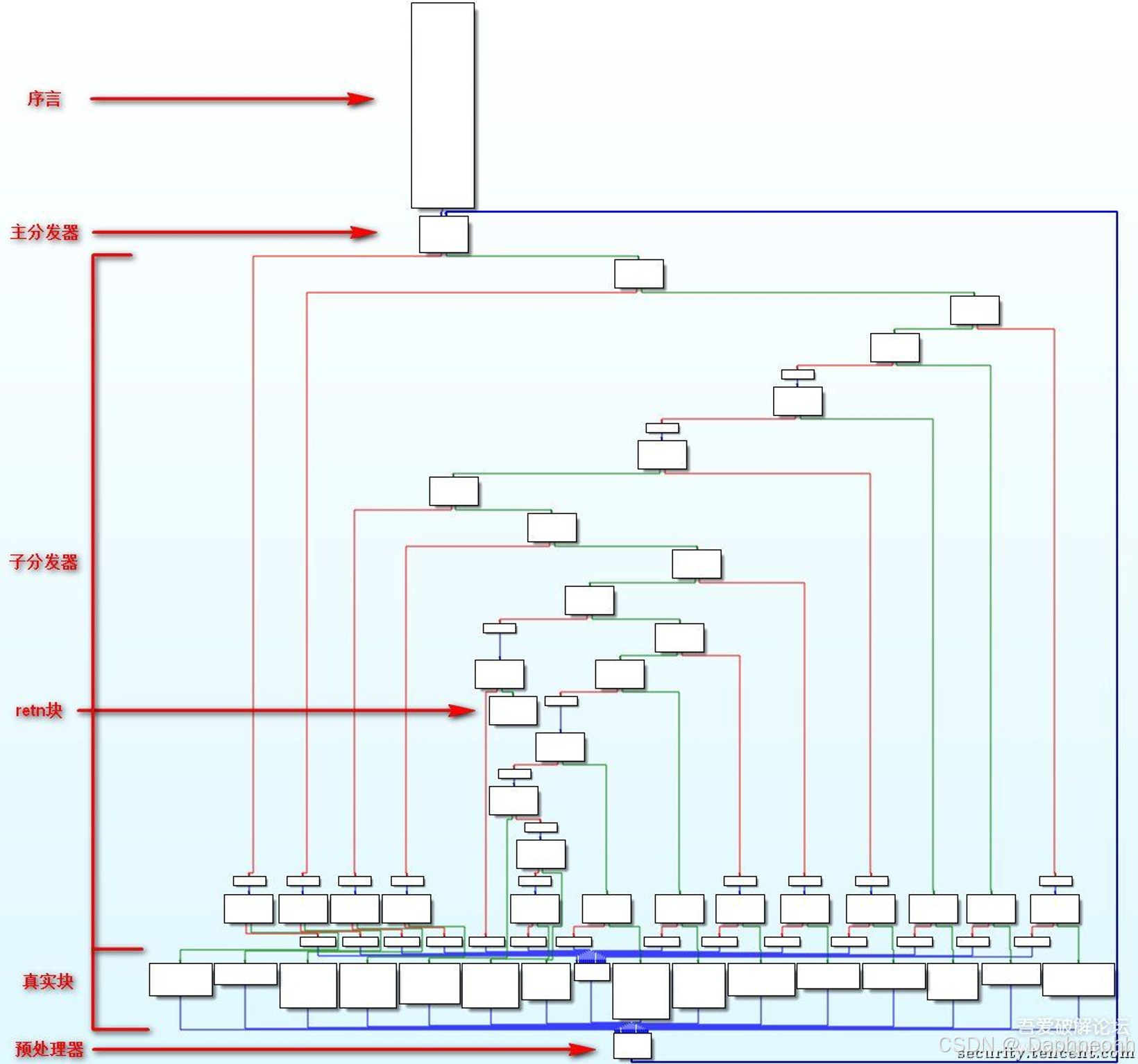

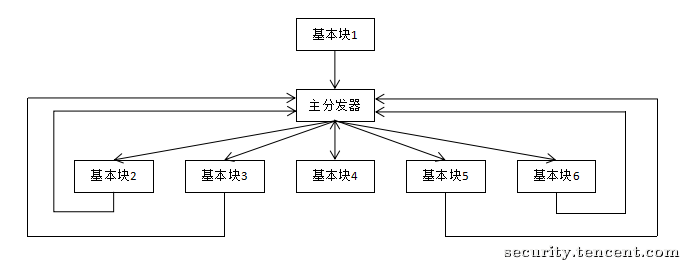

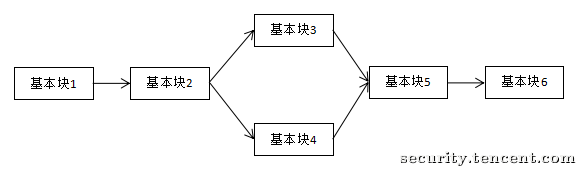

上图是一般的程序流程，下图是进行了控制流平坦化混淆的程序流程

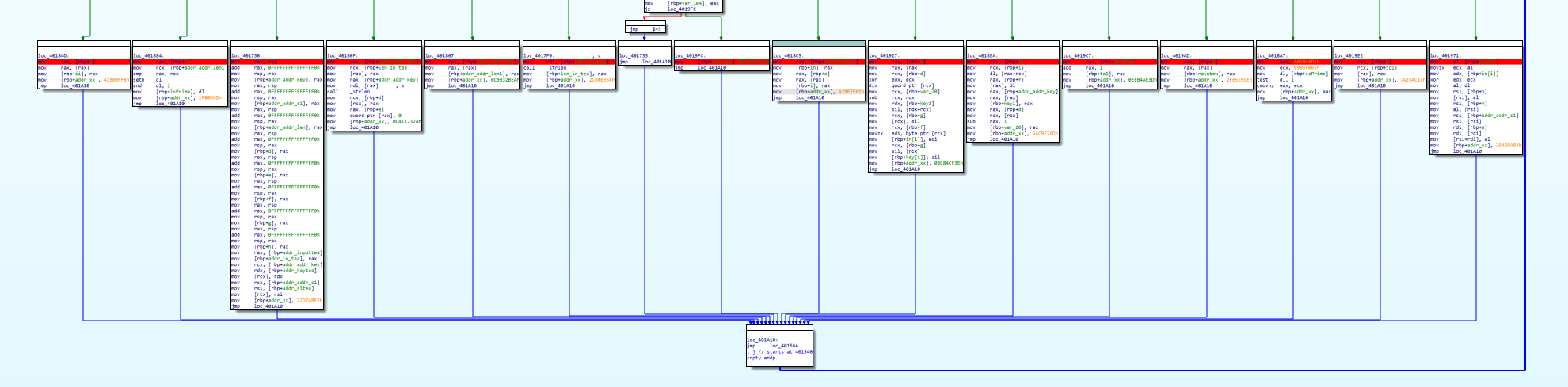

可以看出来就是混淆让你看不出来，实战是这个样子的

实战

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
 while ( 1 )
  {
    while ( 1 )
    {
      while ( 1 )
      {
        while ( 1 )
        {
          while ( 1 )
          {
            while ( 1 )
            {
              while ( 1 )
              {
                while ( 1 )
                {
                  while ( 1 )
                  {
                    while ( 1 )
                    {
                      while ( 1 )
                      {
                        while ( 1 )
                        {
                          while ( 1 )
                          {
                            v23 = v27;
                            v22 = v27 + 1132146882;
                            if ( v27 != -1132146882 )
                              break;
                            *v36 = v46 ^ v45;
                            (*v33)[(_QWORD)*v30] = *v36;
                            v27 = 541252275;
                          }
                          v21 = v23 + 1005509852;
                          if ( v23 != -1005509852 )
                            break;
                          v38 = (unsigned __int64)*v33;
                          v27 = 1110970360;
                        }
                        v20 = v23 + 911004694;
                        if ( v23 != -911004694 )
                          break;
                        v40 = v38 < v39;
                        v27 = 32509293;
                      }
                      v19 = v23 + 290148803;
                      if ( v23 != -290148803 )
                        break;
                      *v33 = v48;
                      v27 = 2049158165;
                    }
                    v18 = v23 - 32509293;
                    if ( v23 != 32509293 )
                      break;
                    v5 = 1712900817;
                    if ( v40 )
                      v5 = 1761996910;
                    v27 = v5;
                  }
                  v17 = v23 - 509491216;
                  if ( v23 != 509491216 )
                    break;
                  v29 = (const char **)&v6;
                  v30 = &v6;
                  v31 = &v6;
                  v32 = &v6;
                  v33 = &v6;
                  v34 = &v6;
                  v35 = &v6;
                  v36 = (unsigned __int8 *)(&v6 - 2);
                  s = v25;
                  v6 = v24;
                  v27 = 1926711538;
                }
                v16 = v23 - 541252275;
                if ( v23 != 541252275 )
                  break;
                v47 = *v33;
                v27 = 795171278;
              }
              v15 = v23 - 746586984;
              if ( v23 != 746586984 )
                break;
              *v31 = (unsigned __int8 *)v37;
              v4 = strlen(*v29);
              *v32 = (unsigned __int8 *)v4;
              *v33 = 0LL;
              v27 = -1005509852;
            }
            v14 = v23 - 795171278;
            if ( v23 != 795171278 )
              break;
            v48 = v47 + 1;
            v27 = -290148803;
          }
          v13 = v23 - 1110970360;
          if ( v23 != 1110970360 )
            break;
          v39 = (unsigned __int64)*v31;
          v27 = -911004694;
        }
        v12 = v23 - 1117683297;
        if ( v23 != 1117683297 )
          break;
        *(_BYTE *)v34 = i[(_QWORD)in];
        key1 = *v29;
        v44 = *v32 - 1;
        v27 = 1422522285;
      }
      v11 = v23 - 1422522285;
      if ( v23 != 1422522285 )
        break;
      *(_BYTE *)v35 = v44[(_QWORD)key1 - (unsigned __int64)*v33 % (unsigned __int64)*v32];
      v45 = *(unsigned __int8 *)v34;
      v46 = *(_BYTE *)v35;
      v27 = -1132146882;
    }
    result = (unsigned int)(v23 - 1712900817);
    v10 = v23 - 1712900817;
    if ( v23 == 1712900817 )
      break;
    v9 = v23 - 1761996910;
    if ( v23 == 1761996910 )
    {
      in = s;
      i = *v33;
      v27 = 1117683297;
    }
    else
    {
      v8 = v23 - 1926711538;
      if ( v23 == 1926711538 )
      {
        v37 = strlen(s);
        v27 = 746586984;
      }
      else
      {
        v7 = v23 - 2049158165;
        if ( v23 == 2049158165 )
          v27 = -1005509852;
      }
    }
  }
  return result;
}

可以去平坦但比较麻烦，当然也可以看汇编去做，首先先下断点，因为他是平坦的，就像是分发器，让程序进行操作

所以可以在每个小程序前进行断点，看这里像不像一个处理终端，把输入进来的程序分流发配，按照这个思路，就可以一段段去看完整的代码，要细心
